Thin Film Deposition Monitor

Eon™ - the new era in thin film deposition has arrived !

...more



CurrentNews

Vacuum Exhaust System

VES-210 is a Vacuum Exhaust & Gas Backfill Production System.

...more



StoreFront

Visit our Cyber Store





Sign Up to NewsTronix







Product Groups

Custom Designs

      xtronix custom designs removes the burdensome task of design engineering, parts procurement, assembly, testing and final qualification. We work with suppliers, often companies we actively distribute products of, to obtain the best price and delivery, leaving our customers more time to focus on their own clients and less time worrying about all the intricacies of custom designs.

In addition, xtronix, with its global resources and cutting edge know-how, is often times able to procure custom sub-parts in small quantities.

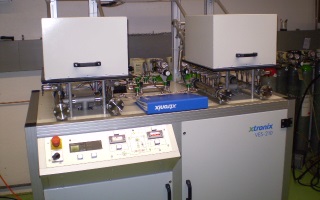

Custom components and systems       Click image for details of VES-210 System ...more
Back to Top

Cryogenics

      If your application requires very low temperatures, hovering the 2°K to LN2 regime, call us.

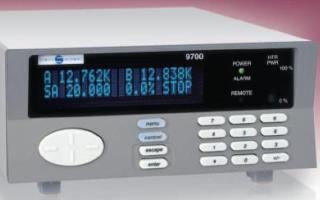

While silicon diodes, Ruthenium oxide or GaAs sensors detect the decreasing temperatures, various models of Kelvin temperature meters /controllers keep an eye on a cryostat's cooling performance. We also propose platinum RTD's and Chromel/Gold thermocouple sensors.

Contact us for spares for most brands of closed cycle cryostats & cryopumps.


Click to securely pay in US$, €uro, GB£, CHF
Secure Payment

Instrumentation to make and measure extreme cold       Click image to link to Scientific Instruments website ...more

Click here for LN2 & Helium Cryogenic Bellows Valves able to work from 3.15°K to 250°C

Back to Top

Gas Flow Management







      Flow Control (Gas / Liquid): Semiconductor Devices, Flat Panel Displays and now even Photo Voltaic or Solar Cells are involved in an ever increasing part of our lives.

To manufacture these high tech devices it is important to have reliable and precise Fluid Control. HORIBASTEC is the established world leader in this area offering a full line up of Gas, Liquid, and Vapor delivery products. The company also proposes a range of liquid vapor sources for point of use chemical vaporization.



 The CRITERION D200 series is a pressure insensitive, wide range, high precision mass flow device particularly suited for the wafer fab. Click for more details.

2-way, 3-way, multi-way Flowlink bellows or diaphragm gas valves help shutoff upstream and downstream gas lines.

We can also custom design and manufacture your gas panels, as well as more complex gas blending systems.


.....from the ROTAREX Group, over 6'500 metal gasket face seal or double-ring tube fittings, single & double stage pressure regulators and micrometering - needle - ball - toggle valves as well as 300 bar line valves.



MFCs / Vaporizers

Precision Gas Valves

Fittings / Regulators



Click here to visit ROTAREX gas page

Click here to link to HoribaSTEC website ...more

Click here to link to FLOWLINK website ...more

Back to Top

Nuclear and Particle Physics

      CAEN Electronic Instrumentation is one of the first lines of products xtronix started marketing back in 1988!

The company is leader in the design and manufacture of sophisticated electronic instrumentation for sub-nuclear, nuclear and astro-particle physics: Low Voltage & High Voltage Power Supply Systems, Signal Conditioning, Front- End, Trigger, Data Acquisition Electronics (VME, NIM, CAMAC standards) and Powered Crates.

CAEN activities are at the forefront of the technology thanks to years of intensive collaborations with the major Research Centers and Universities around the world and enjoys a privileged market position internationally as well as in Switzerland

Close to 40% of the company's production is in custom designs; a reminder that if you do not immediately find what you need, please contact us!


NIM-CAMAC-VME Modules

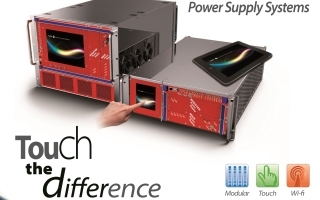

Power Systems / Crates
      Click to visit our dedicated Beamline Science site ...more

Click to view a slideshow ...more

Back to Top

Semiconductor Wet/Dry Process

      Horiba Semiconductor Instruments & Systems offer a comprehensive range of fluid control and analytical solutions to improve yield, increase throughput and add value to the Semiconductor, Flat Panel Display, Photo-Voltaic and related manufacturing processes.

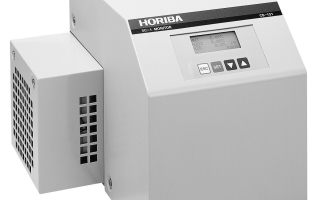

Wet Process (inline & bench top): HORIBA provide a wide range of inline and offline concentration monitors for the different high and low concentration wet etching processes for Low-k, Al, Oxide/Nitride, Poly Silicon etc. In addition to monitors for wet etching a wide range of monitors for the different cleaning steps, for example removal of particles, resist, metallic layer, organic layers, oxides, polymers etc are also available.

To assist selection of the correct monitor for you chemistry please view the Chemical Solution Monitor PDF brochure.

Utilities Monitoring & Control: HORIBA provide the instrumentation that is relied upon to control processing and support utilities in such areas as Semiconductor and Flat Panel Display processing. These products are widely used to measure chemical concentration in the facilities or utilities area, for example measuring the purity of ultra pure water.

Dry Process Monitoring: Semiconductor devices, Flat Panel Displays and Photo Voltaic cells remain at the cutting edge of technology. HORIBA has many years experience in this high-tech field. HORIBA instrumentation is used to measure the chamber conditions for example to monitor plasma to detect the end point in an etching process. The instrumentation is also widely used in gas analysis in a variety of applications from inline to offline and from high concentration to parts per trillion levels.

The FG-100A (pictured) series of FTIR gas analyzers enables the detection and measurement of a wide variety of substances, such as PFCs, greenhouse gases and semiconductor / flat panel display (FPD) process gases. Legislation / guidelines encourages industry to act to reduce these substances due to their contribution to global warming.


Analytical tools for semiconductor fabs       Click image to link to HORIBA website

Click to view a slideshow ...more

Back to Top

Surface Science

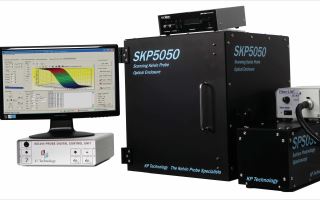

SKP5050 Kelvin Probe
      The Kelvin Probe is one of the most sensitive surface science tools capable of detecting sub-monolayer films coverage. It is a non-contact, non-destructive measurement device used to investigate properties of materials. It is based on a vibrating capacitor and measures the work function difference (for measurement on metals, bulk semiconductors) or surface potential (for measurements on semiconductor surfaces, thin films, or in many other applications), between a conducting specimen and a vibrating tip.

While the list of research area's the Kelvin Probe can be applied to is constantly expanding, some examples include:  Adsorption, Biotechnology, Charge Analysis, Coatings, Corrosion, Display Technology, Fermi-level Mapping, Fuel Cells, Medical Devices, MEMS, Nanotechnology, OLEDS, Pyroelectricity, Semiconductors, Solar Cells, Surface Contamination, Surface Chemistry and Surface Photovoltage. The work function is an extremely sensitive indicator of surface condition and is affected by adsorbed or evaporated layers, surface reconstruction, surface charging, oxide layer imperfections, surface and bulk contamination, etc.

A non-contact, non-destructive vibrating capacitor device it is used to measure the work function difference (also referred to as potential contrast image), or for non-metals, the surface potential, between a conducting specimen and a vibrating tip. The Kelvin Probe has undergone a dramatic renaissance in recent years, with highly improved resolution of the instrument while also ensuring that it can be used in a vacuum. KP tips supplied are typically around 2mm to 10mm while 0.05 mm tips have also been supplied for experienced system users; tip diameter defines the spatial resolution. The Kelvin Probe is a non-invasive technique, yet extremely sensitive to changes in the top-most atomic layers, such as those caused by deposition, absorption, corrosion and atomic displacement. In some cases it can detect less than one-thousandth of an absorbed layer.

The SKP5050 and SKP200200 are the best-selling Kelvin Probe packages by KP Technology. These systems come complete with 450x450x480 mm Faraday Cage/Light Enclosure and offer digital control of all Kelvin Probe parameters using the award winning high-resolution off-null measurement system. The packages come complete with test sample and video system and can be readily extended to surface photo voltage and photovoltage spectroscopy using the SPV020 and SPS030 upgrade modules for semiconductor, organic polymer (OLED) and solar cells analysis.

The list of research area's the Kelvin Probe can be applied to is constantly expanding, some examples include:
Adsorption, Biotechnology, Charge Analysis, Coatings, Corrosion, Display Technology, Fermi-level Mapping, Fuel Cells, Medical Devices, MEMS, Nanotechnology, OLEDS, Pyroelectricity, Semiconductors, Solar Cells, Surface Contamination, Surface Chemistry and Surface Photovoltage.

Here is a spectrum of dedicated Kelvin Probe systems specially developed for applications in a variety of environments ranging from ambient, controlled atmosphere and relative humidity through to UHV. Client choice of tip sizes, translator movement, port adapters and non-standard mounting angles can be accommodated for.

Micro-Nano Probes

Click to view a slideshow ...more

Back to Top

Thin Film Products

      From the basic PVD source and power supply to the custom coater featuring multiple sputter magnetrons and load-lock for sample introduction, we've addressed the applications.

And from the basic design with just the vacuum cycle automated to a fully automated coater, or a multi-chamber cluster design tool, we can address it.



Sputter sources and power generators       Follow link for Thin Film Monitor ...more

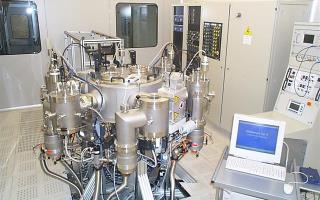

Follow link for Multi-Chamber Cluster Tools ...more

Address us your needs in PVD techniques ...more

Click to view a slideshow ...more

Back to Top

Thin Film Consumables

      Our key consumable products in thin film technology are:
  • X-TRONIX Quality Quartz Crystals (silver/gold/alloy electrodes)
  • Sputter targets for research and production use
  • Evaporation materials for ebeam and Joule-effect coating
In addition we supply alloy wires and ribbons for a variety of welding applications.

For more on quartz crystals, see drop down menu under 'Applications'.

Click to securely pay in US$, €uro, GB£, CHF
Secure Payment


Sputter and Evaporation materials / quartz crystals       Follow link for Metals, Ceramics, Borides, Carbides, Fluorides, Nitrides, Sulfides, etc ...more

Follow link for Quartz Crystals ...more

Back to Top

Vacuum Products

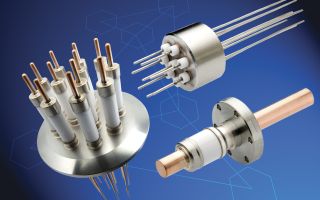

      With well over 3000 line items covering all types of vacuum flanges, fittings, feedthroughs and viewports we are a key source of supply for any scientist/engineer working around a high vacuum or UHV chamber. We also undertake custom-designed chamber projects, from the most simple to the most complex geometries.

In addition to basic vacuum hardware and chambers, we have a very complete range of Vacuum Gauges and the world's most miniature RGA!

We cater to many types of custom designs, from the component level to full system integration.

Click to securely pay in US$, €uro, GB£, CHF
Secure Payment


KF - ISO - CF Hardware       Follow link for vacuum hardware ...more

Follow link for vacuum chambers ...more

Follow link for vacuum gauges ...more

Back to Top

Vacuum Consumables

      For over 20 years we have supplied scientists and engineers with specialty pump fluids for their mechanical and oil diffusion pumps.

We are a key supplier of such specialty fluids & greases across a large part of Europe, South Africa and Asia.

Other vacuum related consumables include ion pump elements, titanium sublimation pump filaments, various replacement TC and ionization gauges, ebeam evaporation, ion implanter and helium leak detector filaments, molecular sieve and generally many hard-to-find parts which we have the market contacts to assist our valued customers.

Click to securely pay in US$, €uro, GB£, CHF
Secure Payment

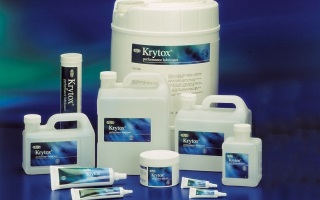

Specialty pump oil & grease / filaments / gauges       Click for DuPont Krytox oil & grease, Santovac oil - Silicon DP fluids -  Filaments - Gauges ...more
Back to Top

Domain Names / Web Designs / Hosting / ASP









      This xtronix website is designed, managed and hosted by a sister activity with roots to 1998 when we built our first website. In March 2008 we launched the current design, based on W3C validated code (XHTML/CSS) and supporting ActiveX.

In May 2007 we launched an autonomous, fully automated, secure cyber service eCommerce.to cater to world markets, across all continents. It addresses the pillars of the cyber world - Top Level Domain (TLD) name registration and Web Hosting - along with a slew of parallel products & services. More than 90 million .com and .net domain names have been registered by business and consumers worldwide. And there is an equally impressive demand in many other TLDs. Through this eCommerce webmasters, web developers and ordinary customers can book generic Top Level Domains, such as .com, .net, .org, .info, .biz, .mobi, .me, .name, .ws and .asia as well as over 50 country code Top Level Domains. Also proposed:
  • Private Registrations: Protect yourself from spam, scams, prying eyes and worse.
  • Transfers: Fast, automated and risk-free. Transfer your domains to SwissTronix Cyber Service at very low prices! Includes a 1-year extension.
  • Backorders: Monitor vital changes to any domain and secure your chance to backorder that domain at special savings.
  • Special Bulk Pricing: If you are registering or transferring multiple domain names at once you can get special bulk pricing!
  • Internationalized Domain Names (IDN): With Internationalized Domain Names search capabilities, you can register .COM and .NET domain names in over 100 native languages (non-ASCII characters) such as Chinese, Japanese and Arabic.

As a web-based Application Service Provider (ASP), this activity focuses on plug-in modules easy to use and easy to manage. Close care is put on important details that enhance productivity so clients can focus on their customers instead of on trying to reinvent the wheel or looking for ASP solutions across half a dozen different platforms!

Over 60 TLDs spanning America, Europe and Asia can be booked on the fly with a few clicks.

Some of the 50+ products & services include Blogs, File Back-up Space, CSS Web Authoring (e.g. www.SwissTronix.info), Secure Sockets Layer (SSL) Encryption Technology, POP3 or IMAP Email, Permission-based Email Marketing.....and much more!

On the web hosting front, multi-options for each of the 3 hosting plans - Shared Server, Virtual Dedicated Server and Dedicated Server. All plans offer the choice of Linux or Windows platforms, generous disk space and extensive language support!

Credit card transactions on the eCommerce site are protected with up to 256-bit Secure Sockets Layer (SSL) encryption technology. And the same technology is also available for client websites!



SwissTronix Web Designs

Secure Cyber Services

      Follow link for SwissTronix Web Designs ...more

Follow link for SwissTronix eCommerce website ...more

Back to Top

Designer cyberStore

      While our mission is selling products for science and advanced technologies, nevertheless, a selection of over 30 useful designer items are also available to the public at large for online purchase at our cyber store.

The collection can be perceived as exclusive, seeing these items are not mass distributed but rather purchased by individuals often at opposite sides of our globe!


Exclusive Designer Apparel       The headwear, baseball jerseys and still other items come in different colors ...more
